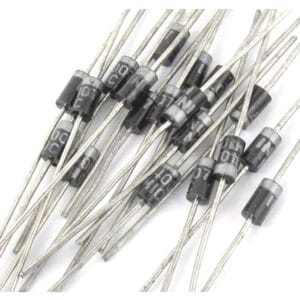

10Pcs 1N4007 General Purpose Diode

Description

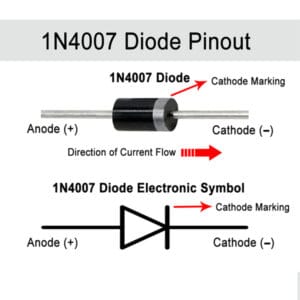

The 1N4007 is a popular general-purpose silicon rectifier diode with a high reverse voltage rating of 1000V and a continuous forward current rating of 1A. Its primary function is converting alternating current (AC) to direct current (DC) in power supplies and other electronic circuits.1N4007 diode has a cathode (-) and anode (+). In the schematic symbol, the tip of the triangle with the line on top of it is the cathode. The cathode is marked on the body of a diode by a band as shown below.

Specifications:

• Maximum Peak Repetitive Reverse Voltage (VRRM): 1000V
• Average Forward Current (IF(AV)): 1.0A
• Peak Forward Surge Current (IFSM): 30A (for a short duration of 8.3ms)
• Maximum Forward Voltage Drop (VF): 1.1V at 1.0A DC
• Maximum DC Reverse Current (IR): 5.0µA at 25°C
• Operating Temperature Range: -55°C to +175°C
• Package Type: DO-41 (axial-leaded, through-hole) or M7/SMA (surface-mount)
