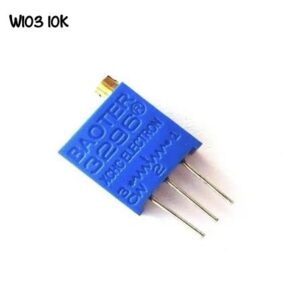

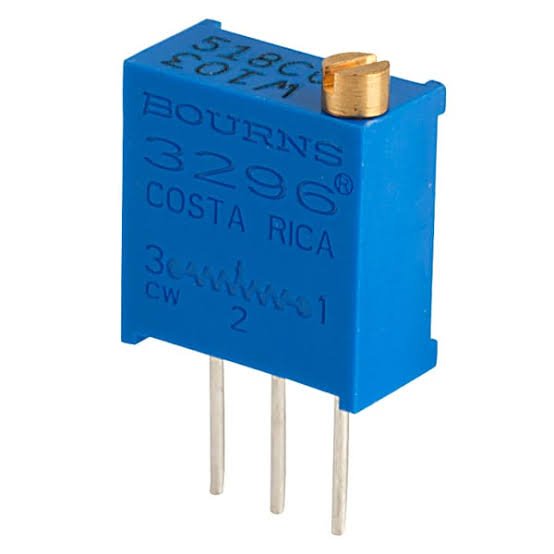

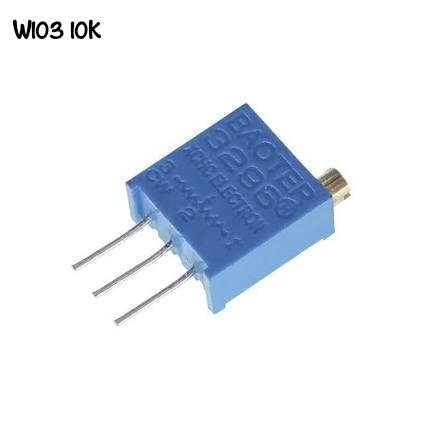

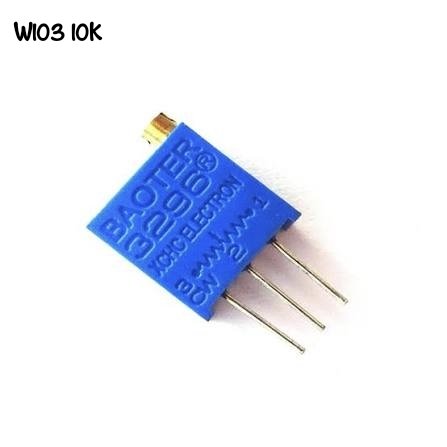

3296W 10K (W103) Trimpot Trimmer Potentiometer
₨30
Upgrade your circuit calibration with this high-quality 10kΩ multi-turn trimmer potentiometer. Featuring the popular top-adjustment design and inline pins, this W103 (3296W series) trimpot offers 25 full turns for ultra-precise voltage and resistance tuning. Built with durable cermet material, it delivers excellent thermal stability and reliable performance for your electronics projects.
✓ Free delivery on order Rs 1,500 or above
✓ Easy returns within 3 days with an unboxing video.
A W103 potentiometer is a high-precision, multi-turn miniature 10kΩ (10,000 Ohm) trimmer potentiometer (commonly called a trimpot). The letter “W” represents the top-adjustment terminal style with inline pins, while “103” is the standard resistance code where “10” is the base value and “3” represents three trailing zeros (10,000 Ohms).
Technical Specs
- Total Resistance: 10 kΩ
- Adjustment Type: Top adjustment, requiring 25 to 28 full turns from minimum to maximum for precise calibration.
- Material Type: Cermet (ceramic/metal composite) for high thermal stability and low electrical noise.
- Power Rating: 0.5W (1/2 Watt) at 70°C.
- Mounting Type: Through-hole PCB mounting with 3 pins.
Common Application Setups
Voltage Divider Setup
Connect Pin 1 to input voltage (\(V_{CC}\)), Pin 3 to Ground (0V), and pull your adjusted variable voltage from Pin 2. This setup is widely used to calibrate contrast levels on LCD screens or tune op-amp offsets.
Variable Resistor (Rheostat) Setup
Connect Pin 2 and either Pin 1 or Pin 3 into your circuit path. Turning the screw dial will alter the direct circuit line resistance anywhere from near 0 Ω to 10,000 Ω.
