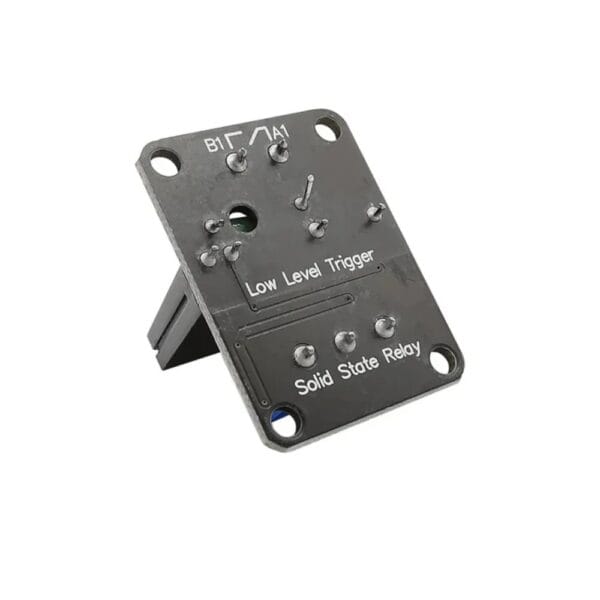

5V Solid State Relay Module 1 Channel

Name: 5V Solid State Relay Module 1 Channel | dcart.pk
SKU: DC2983126
Price: 340 PKR
Availability: InStock

₨340

5V 1-channel solid state relay (SSR) module with a low-level trigger is a silent, high-speed electronic switch that uses a 5V DC signal to control AC loads up to 2A.

✓ Cash on delivery available.
✓ Free delivery on order Rs 1,500 or above
✓ Easy returns within 3 days with an unboxing video.

SKU: DC2983126 Category: Circuit and Modules Tag: relay
Brand: dcart.pk

Description

A 5V 1-channel solid state relay (SSR) module with a low-level trigger is a silent, high-speed electronic switch that uses a 5V DC signal to control AC loads up to 2A. Unlike mechanical relays, it has no moving parts, offering a longer lifespan and faster switching times in the microsecond range.

Specifications and Features:

Control Voltage: 5V DC.
Trigger Type: Low-level trigger (active low). The relay activates when the control signal is between 0V and 2.5V (or GND).
Output Load: Supports 100V to 240V AC at a maximum current of 2A.

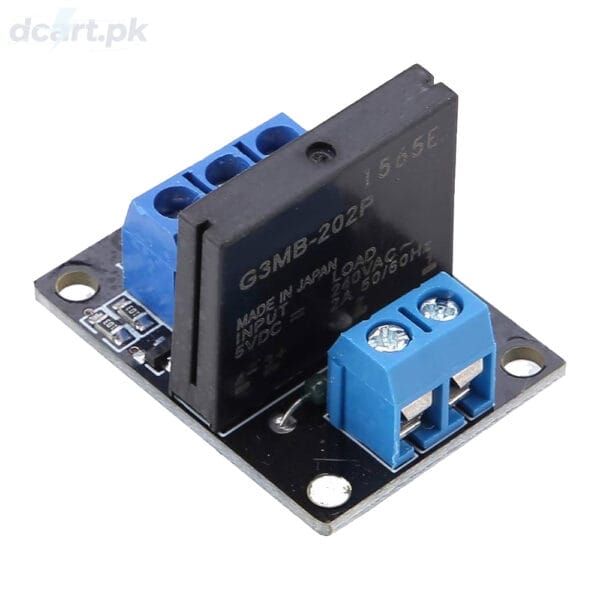

Component: Often based on the Omron G3MB-202P solid state relay.
Protection: Usually includes a built-in resistive fuse (240V 2A) to protect against overcurrent.
Indicator: Equipped with an LED that lights up when the relay is triggered.
