Description
POT 3296 W103 Potentiometer 10k 100k also known as a trim pot, is a type of variable resistor or adjustable potentiometer. It adjusts , tune, and calibrate circuits. These trimmer resistors are often uses initially to calibrate equipment after manufacturing.
Features:
- Multi-turn / Cermet / Industrial / Sealed
- 5 terminal styles
- Tape and reel packaging available
- Chevron seal design
- Mounting hardware available (H-117P)
- RoHS compliant
Specifications:
- Type : 3296W
- Maximum Voltage : 350VDC
- Nominal Power : 0.5W
- Effective Travel : 28 Turns
- Operating Temperature Range : -25°C to +150°C

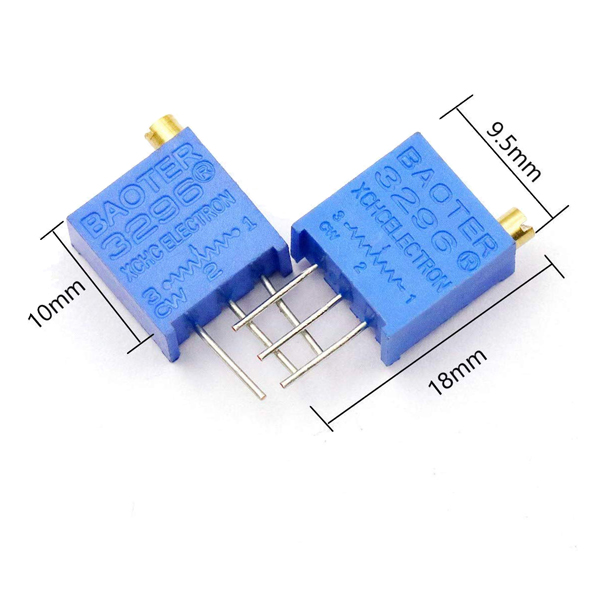

- Size (HxWxL) : 10mm x 4.8mm x 9.5mm
