DC-DC 600W CC-CV Boost Converter Module

Introducing the DEVMO 600W Constant Current Boost Converter, the perfect solution for powering your electronic devices with efficiency and precision. This DC to DC step-up transformer module is designed to transform input voltages ranging from 10V to 60V into a continuous and adjustable output voltage of 12-60V. With a maximum output current of 10A, this boost converter provides you with the power you need to run your devices without any limitations. Whether you’re looking to power LED lighting, electronic components, or even industrial applications, this module has got you covered. The DEVMO 600W Constant Current Boost Converter features a compact size of 85mm*52mm*21mm(L*W*H) and weighs only 90g, making it ideal for space-constrained installations.

Its lightweight design ensures easy and hassle-free integration into your setup. Designed with convenience in mind, this boost converter is equipped with a CV-ADJ potentiometer and a CC-ADJ potentiometer for easy voltage and current regulation. By simply adjusting these potentiometers, you can set the output voltage and current to suit your specific requirements. The clockwise and counter clockwise adjustment options allow for precise fine-tuning, ensuring optimal performance. Not only does the DEVMO 600W Boost Converter offer exceptional functionality, but it also boasts impressive conversion efficiency, ranging from 92% to 96%.

This high efficiency ensures minimal power loss, allowing you to maximize the potential of your power supply. Safety is a top priority, which is why this module incorporates input reverse protection, preventing any damage caused by incorrect wiring. Additionally, with an operating temperature range of -40 to +85 degrees Celsius, this boost converter is designed to withstand extreme conditions, providing reliable performance in various environments. Whether you’re a DIY enthusiast or a professional in need of a reliable power supply driver, the DEVMO 600W Constant Current Boost Converter is the perfect choice. Its versatile features, efficient performance, and compact design make it a valuable addition to any project or application. Invest in the DEVMO 600W Constant Current Boost Converter today and experience the power, efficiency, and reliability you need for your electronic devices.

Note: Do not use short circuit to adjust the current. The boost module circuit structure cannot be adjusted by short circuit.Hi

Specifications:

• Module name: 600W boost constant current module
• Module Properties: Non-Isolated Boost Module (BOOST)
• Input voltage: DC10V-60V
• Input current: 10 (MAX)
• Static operating current: 10mA (12V 20V, the higher the output voltage, static too much)
• Output voltage: 12-60V continuously adjustable (default output 19V shipment, other voltage please pay attention to the dispensers)
• Output current: 10A or more 6A Please strengthen the heat dissipation (The larger the difference between the input and output
• ressure, the smaller the output current)
• Constant current range: 0.2-10A
• Output power: = input voltage * 10A, such as: input 12V * 10A = 120W, input 24V * 10A = 240W, input 36V * 10A = 1360W, input 60V * 10A = 600W,
• Operating temperature: -40 to + 85 degrees (enhance heat dissipation if the ambient temperature is too high)
• Operating frequency: 150KHz
• Conversion efficiency: 92%-96% (efficiency is related to input, output voltage, current, pressure)
• Input reverse protection: No (Note that forward and reverse are not reversed)
• Installation: 4 3mm screw holes
• Wiring method: wiring output

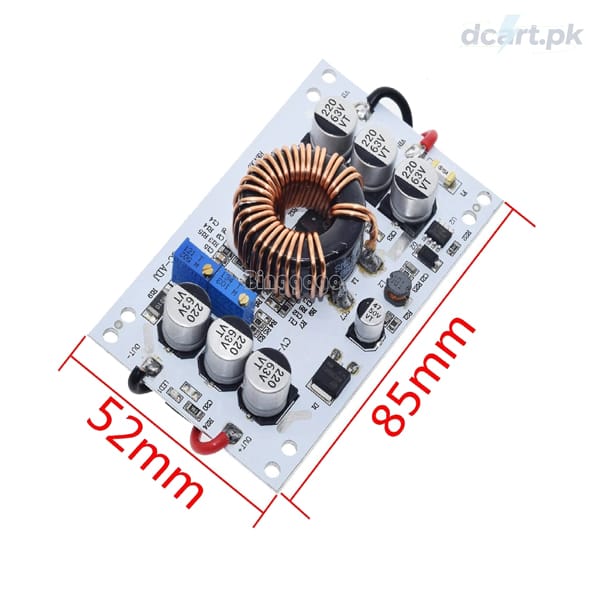

• Module size: length 85mm width 52mm height 21mm
• Module weight: 80 grams
